Inlay Glaze
A white inlay second glaze design with a sharply delimited boundary, on two different glazes, an oil spot, and a translucent white glaze.
In both cases the line between the two glazes is sharp, though there is some interaction between the two glazes at their interface.
cone 10 oxidation
Firing profile
Up Fire profile
150 deg F an hour to 250 deg F
400 deg F an hour to 2050 deg F
120 deg F an hour to 2250 deg F
60 deg F an hour to 2310 deg F with a hold of 20 minutes at 2310 deg F
Down Fire Profile
A half hour hold at 1750 deg F
A three hour hold at 1700 deg F
slow downfire at 25 deg F an hour in the interval 1700 deg F to 1650 deg F
A one hour hold at 1650 deg F
The cones show this as a cone 10 firing.
After glaze application, two glazes are side by side, no gap between, neither
overlaping.
A resist mask is applied to the bisque before the application of the first
glaze, an emulsion wax is applied.
When all is dry, the resist mask is removed, and the second glaze applied to
the now bare bisque.
K2O 0.11
Al2O3 .82
SiO2 5.7
molecular percent Silica 73 %
K2O 0.32
Al2O3 .55
SiO2 3.39
molecular percent Silica 68 %
K2O 0.14
Al2O3 .79
SiO2 3.2
molecular percent Silica 64 %
The inlay glaze nepheline_Z17_0 is thicker on the pot with mashiko_ZJ_0, so is
pale in color.
The thinner application of the inlay glaze on the pot with wt_Z18_0, is
partially responsible for the darker mottled cloudy effect seen in the design.
The color and texture of the inlay are not that of unadulterated
nepheline_Z17_0, which is a warm brown when thin.
The effect of the abutting glaze wt_18_0 on nepheline_Z17_0 is subtle.
Clay body is a grolleg porcelain from Tacoma Clay Art Center.
glaze compositions
Empirical Formula background glaze mashiko_0_n :
Na2O 0.11
Li2O 0.1
CaO 0.26
MgO 0.42
Fe2O3 .23
Empirical Formula background glaze: wt_Z18_0:
Na2O 0.1
CaO 0.03
MgO 0.28
BaO 0.27
Empirical Formula Inlay or Decoration glaze: nepheline_Z17_0 :
Na2O 0.45
CaO 0.4
MgO 0.01
bowls are ~ 6.5 inches in diameter
Mashiko_ZJ_0_N

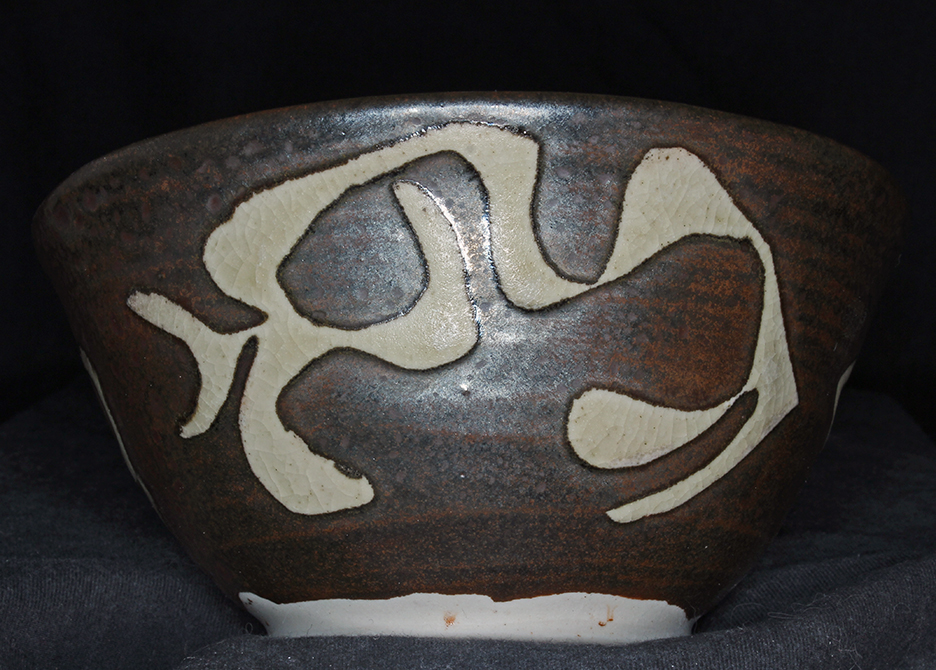

glaze mashiko_ZJ_0 with inlay nepheline_Z17_0

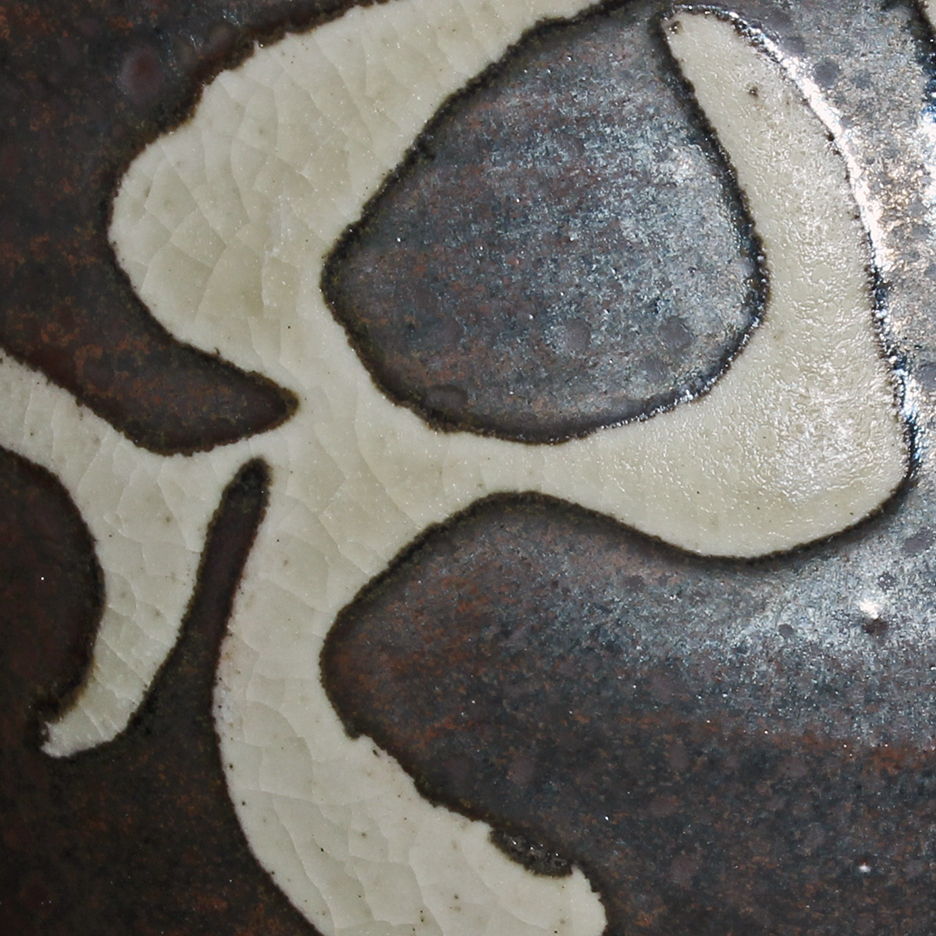

detail of inlay on above pot
wt_Z18_0

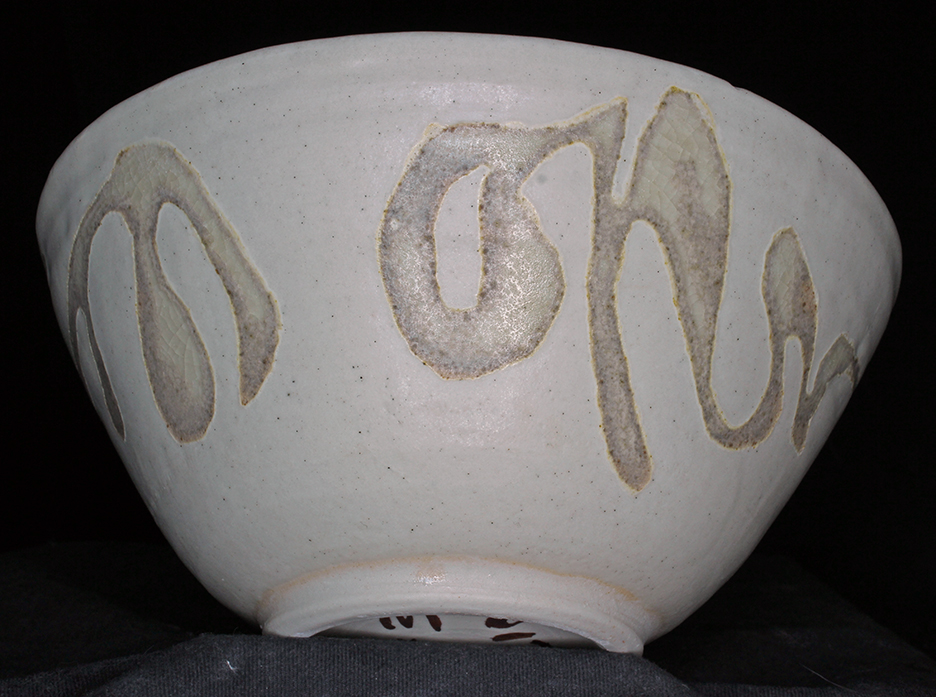

glaze wt_Z18_0 with inlay nepheline_Z17_0

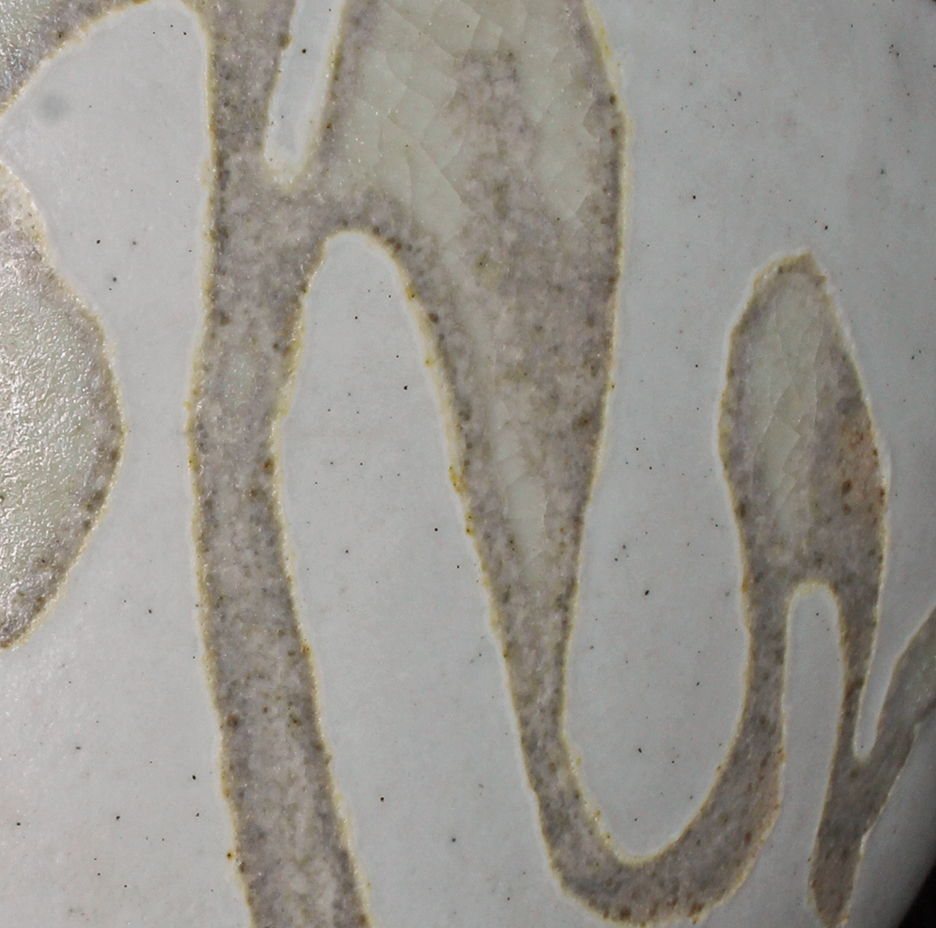

detail of inlay on above pot
Remarks
