Leaf in Texture
Here is a Leaf Print where the contrast is provided by modification of the glaze texture.
cone 10 oxidation
Firing profile
Up Fire profile
150 deg F an hour to 250 deg F
400 deg F an hour to 2050 deg F
120 deg F an hour to 2250 deg F
60 deg F an hour to 2310 deg F with a hold of 20 minutes at 2310 deg F
Down Fire Profile
A half hour hold at 1750 deg F
A three hour hold at 1700 deg F
slow downfire at 25 deg F an hour in the interval 1700 deg F to 1650 deg F
A one hour hold at 1650 deg F
The cones show this as a cone 10 firing.
K2O .14
Al2O3 .44
SiO2 2.76
molecular percent Silica 64 %
The print is produced by embedding a limp leaf into the glaze before it
dries. When dry, the leaf and background glaze are coated in an emulsion wax.
When dry, the leaf is removed, and the remaining print is coated in a thin
layer of a contrast wash.
The contrast wash is Kaolin + Rutile mixed with water and CMC gum.
Clay body is a grolleg porcelain from Tacoma Clay Art Center.
glaze compositions
Empirical Formula of glaze hankPaper_Z1C_0 :
Na2O .09
Li2O .01
CaO .43
MgO .02
BaO .12
SrO .19
TiO2 0.1

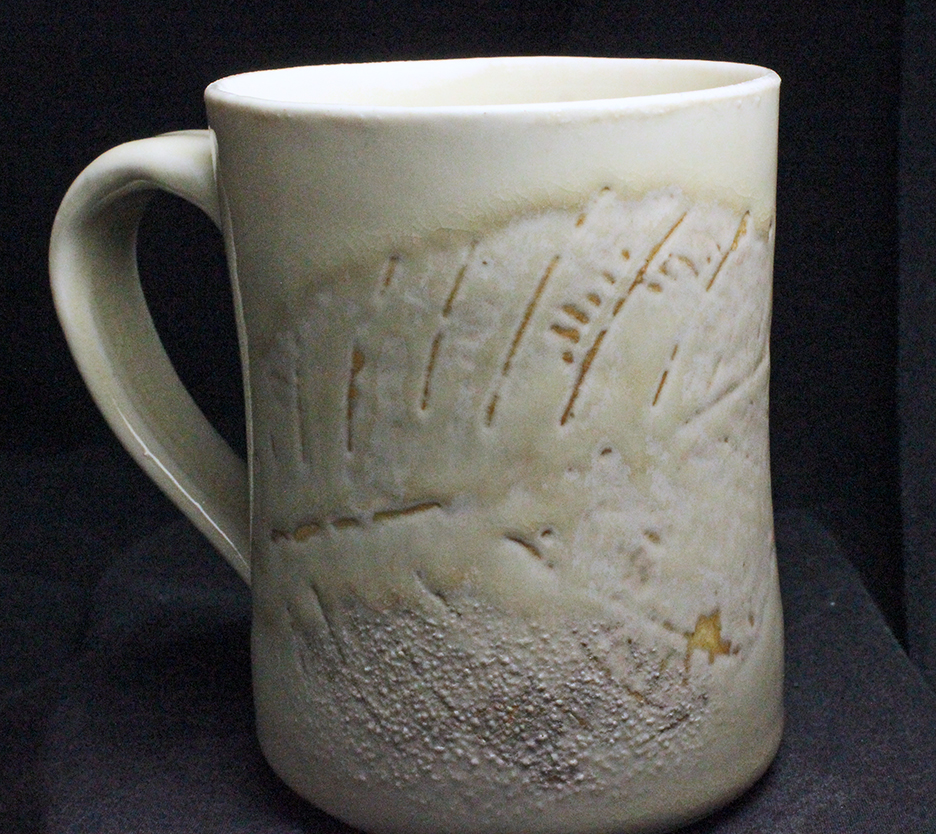

mug is ~ 5 inches high
glaze hankPaper_Z1C_0
Remarks
